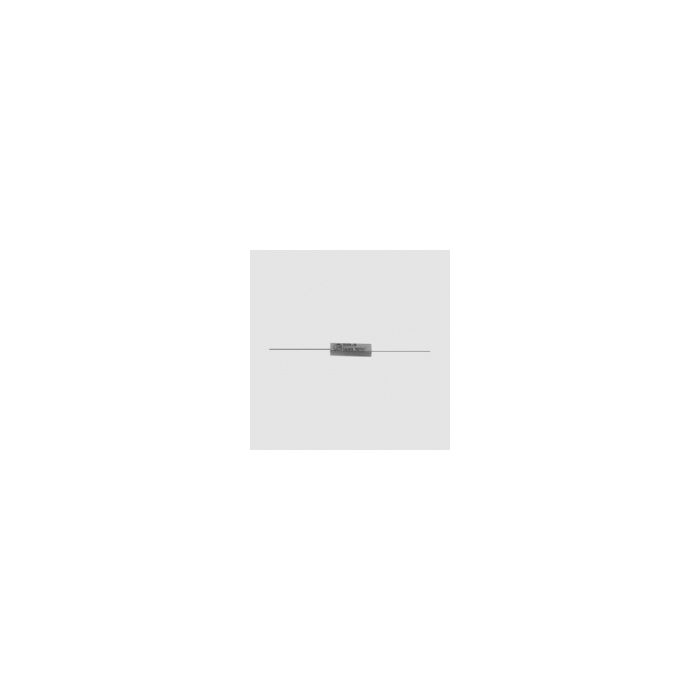

DRAADGEWONDEN 5W 10% 3.9E
€ 0,83
€ 0,69
Artikelnummer
WD050039
- ArtikelnummerWD050039
- MerkBrand
- Aantal 10+ € 0,70 € 0,58
Features
Wound on a glass fiber core with special direct terminals, temperature resistant
Wound resistor embedded in a cement sealed ceramic tube
Technical Specifications
Resistance Value: Row E12, Reduced
Resistance Tolerance: ±10%
Power Rating (70°C): 5W
Operating Voltage, Max.: �(P70xR)
Thermal Resistance: 50K /W
Insulation Resistance: >104 MW
Insulation Voltage: 2000Vrms
Temperature Coefficient: -80...+500x10-6/K
Temperature Range: -55...+350°C
Climatic Category: 55/200/21
Failure Rate (Value Dependent): Approx. 100x10-9/h
Terminal Tensile Strength: 50N
Solderability (Solderglobule Test, IEC68-2-20T): 2,5s
Derating: Linear 70°C to 350°C (0W)
Wound on a glass fiber core with special direct terminals, temperature resistant
Wound resistor embedded in a cement sealed ceramic tube
Technical Specifications
Resistance Value: Row E12, Reduced
Resistance Tolerance: ±10%
Power Rating (70°C): 5W
Operating Voltage, Max.: �(P70xR)
Thermal Resistance: 50K /W
Insulation Resistance: >104 MW
Insulation Voltage: 2000Vrms
Temperature Coefficient: -80...+500x10-6/K
Temperature Range: -55...+350°C
Climatic Category: 55/200/21
Failure Rate (Value Dependent): Approx. 100x10-9/h
Terminal Tensile Strength: 50N
Solderability (Solderglobule Test, IEC68-2-20T): 2,5s
Derating: Linear 70°C to 350°C (0W)
