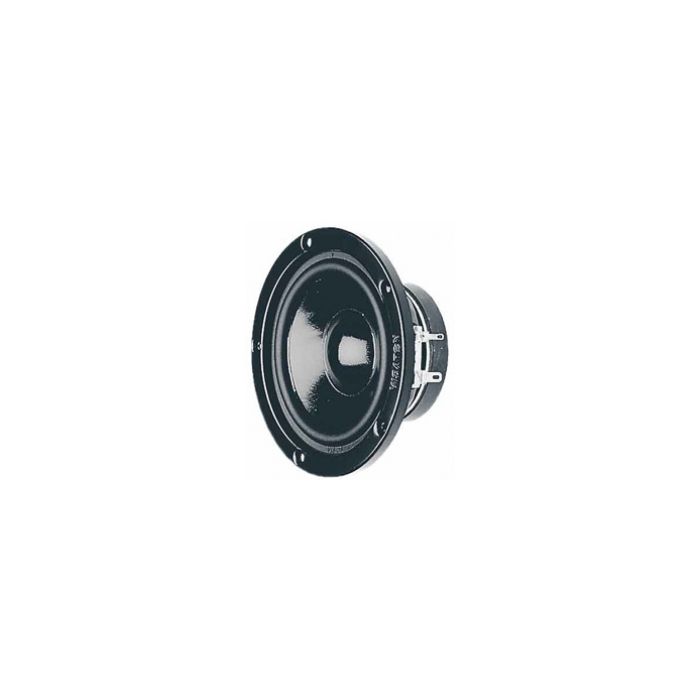

SPEAKER MID 8 OHM 30/50W 67-10000HZ 86DB 100MM

Nominal power handling 30 Watt
Peak power handling 50 Watt
Nominal impedance 8 Ohm
Frequency response fc - 10000 Hz
Mean sound pressure (nominal) 86 dB (1 W/1 m)
Maximum cone displacement 13 mm
Resonance frequency 67 Hz
Magnetic induction 1 Tesla
Magnetic flux 250 µ Weber
Height of front pole-plate 4 mm
Voice coil diameter 2 cm
Height of winding 0,8 cm
Cutout diameter 9,4 cm
Net weight 0,49 kg
D.C. resistance Rdc 6,7 Ohm
Mechanical Q factor Qms 2,57
Electrical Q factor Qes 0,62
Total Q factor Qts 0,5
Equivalent volume Vas 5,8 l
Effective piston area Sd 53 cm2
Dynamically moved mass mmd 3,8 g
Force factor Bxl 4,1 T · m
Inductance of the voice coil 0,85 mH
