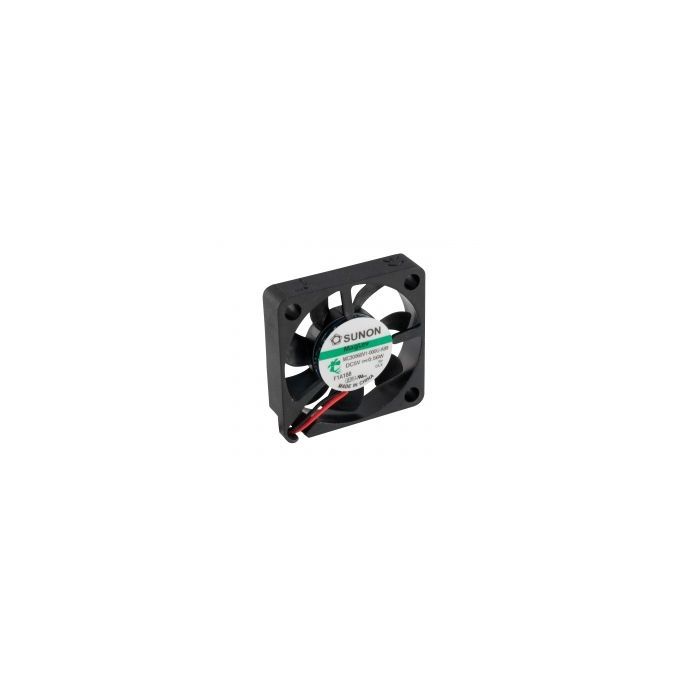

VENTILATOR 5V/DC VAPOLAGER 30X30X6MM 6,2M3/H 15,7DB
€ 8,47
€ 7,00
Artikelnummer
F0503006VE
- ArtikelnummerF0503006VE
- MerkSUNON
- Aantal 5+ € 7,62 € 6,30
Design
 |
|
| Motor: | Patented One-phase Single Coil |
| DC Brushless Motor Design | |
| Nr. of Motor Poles: | 8 |
| Frame Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG28, Stripped, Tinned |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 5V DC |
| Operating Voltage: | 2,5...6V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >500MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
|
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| MF30060V21000UA99 | 5 | 6,28 | 15,7 | 0,072 | 0,36 | 7100 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
