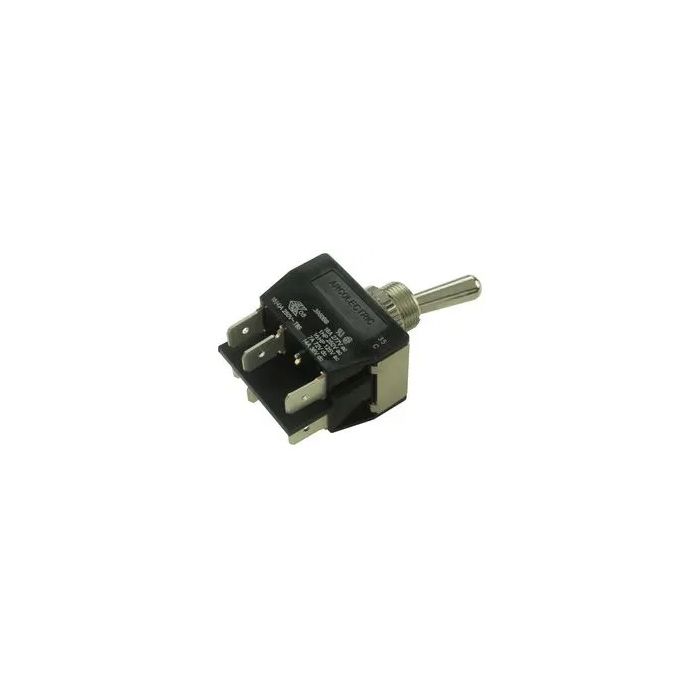

TUIMEL 2 X WISSEL 3ST TOGGLE 10A MET 6,3MM FASTON AANSLUITING
€ 17,25
€ 14,26
Artikelnummer
KN3014
- ArtikelnummerKN3014
- MerkARCOLECTRIC
- Aantal 10+ € 14,67 € 12,12
| Features |
| • For central mounting • Metal rocker arm • Approved up to 250V/10A |
 |
| Selection Table |
| Part Nr. | Nr. of Poles | Function |
| KN3002 | 1-Pole | 1 x On-On |
| KN3012 | 2-Pole | 2 x On-On |
| KN3001 | 1-Pole | 1 x On-Off |
| KN3011 | 2-Pole | 2 x On-Off |
| KN3003 | 1-Pole | 1 x On-Off-On |
| KN3013 | 2-Pole | 2 x On-Off-On |
| KN3004 | 1-Pole | 1 x (On)-Off-(On) |
| KN3014 | 2-Pole | 2 x (On)-Off-(On) |
|
||
| Technical Specifications |
|
|
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 10A |
| Switching Current C3900, C3950: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Ambient Temperature, Max.: | 85°C |
| Insulation Resistance: | >20MOhm |
| Contact Resistance | |
| (New State, 12V DC/1A): | <100mOhm |
| Contact Opening Width: | 3mm |
| Soldering Conditions (Hand Solder): | 350°C/6s |
| Materials | |
| Shell: | Nylon 6.6 |
| Lever: | Brass, Nickel-plated |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
|
|
| Panel Cut-out |
| Wall Strength | Cut-out | |
| [mm] | [mm] | |
| 4,0 | Ø 12,7 | |
|
||
| Approvals |
 05: 10 (4)A, 250Vac, T85C3900, C3950: 05: 16 (4)A, 250Vac, T85  20A 125/277Vac (on-off circuits) 16A 125/277Vac (other circuits) 7A 72Vdc, 14A 36Vdc 250Vac 1hp, 125Vac 1/2hp 85°C, file E45221, file LR10990 |
