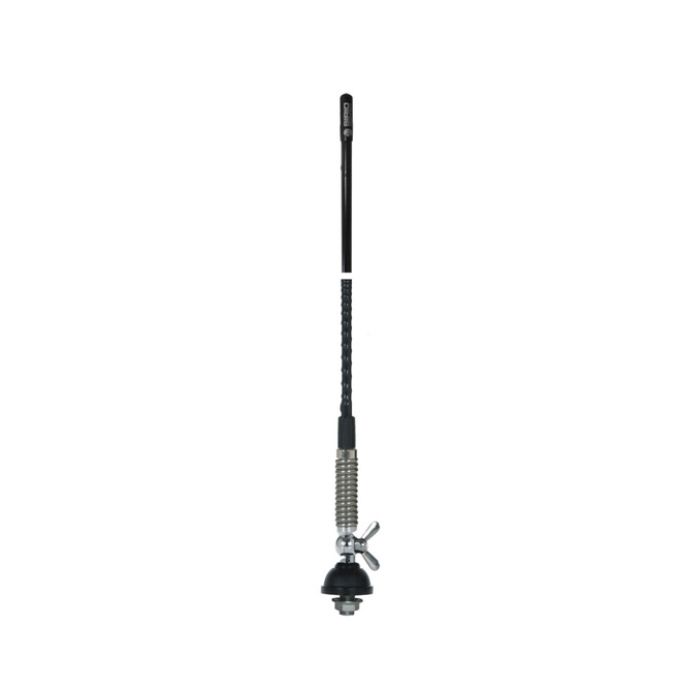

ANTENNE MOBIEL 27MHZ

One of the most used antennas on trucks and agricultural machines. Tunable top screw to fine-tune the antenna, with a protective rubber cap.

With a FME female connector on the cable end for an easy installation of an optional and matching PL 259 connector

Electrical data

• Electrical type: Logarithmic loaded
• VSWR: ≤ 1.2
• Bandwidth: 700 kHz (65 channels) ≤ 2.0
• Maximum continuous power: 20 Watts (CW)
• Power peak: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58
