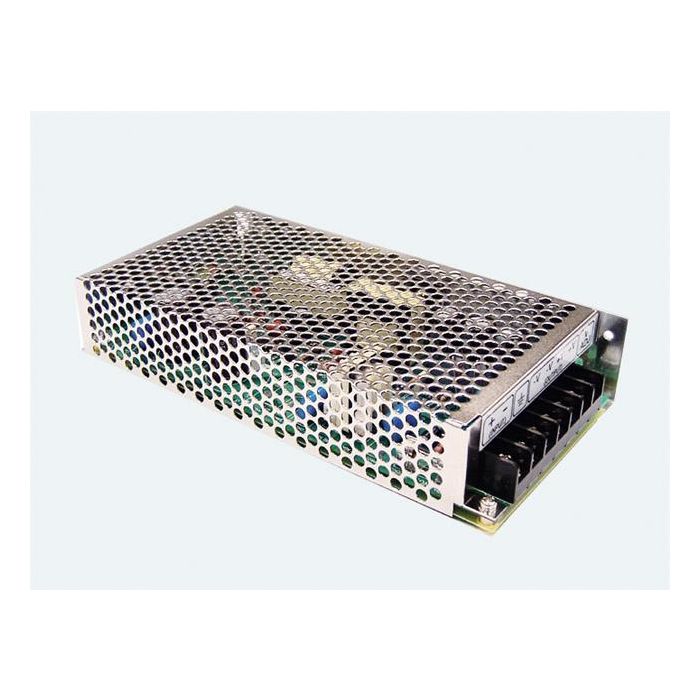

DC-DC CONVERTER 19-36V:12V 8.5A IN BEHUIZING
€ 49,95
€ 41,28
Artikelnummer
SD100B12
- ArtikelnummerSD100B12
- MerkMEANWELL
- Aantal 3+ € 44,95 € 37,15
Features
| • Enclosed case, screw terminals • Overload protection, pulsing hiccup shutdown, auto recovery • Wide input voltage range 2:1 • DC decoupling of input and output • Input/output insulation 1500V • Regulated output voltage • Short-circuit proof |
 |
| Technical Specifications |
|
|
| Input Voltage: | See Table |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 1500V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -15...+60°C |
| Weight: | 650g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UE | UA | IA | PA | Uadj | DUA | URN | h |
| [V] | [V] | [A] | [W] | [V] | [%] | [mVp-p] | [%] | |
| SD-100A-5 | 9,5...18 | 5 | 0...18 | 90 | 4,5...5,5 | 2 | 100 | 78 |
| SD-100A-12 | 9,5...18 | 12 | 0...8,5 | 102 | 11...16 | 1 | 120 | 82 |
| SD-100A-24 | 9,5...18 | 24 | 0...4,2 | 100,8 | 23...30 | 1 | 150 | 84 |
| SD-100B-5 | 19...36 | 5 | 0...20 | 100 | 4,5...5,5 | 2 | 100 | 74 |
| SD-100B-12 | 19...36 | 12 | 0...8,5 | 102 | 11...16 | 1 | 120 | 75 |
| SD-100B-24 | 19...36 | 24 | 0...4,2 | 100,8 | 23...30 | 1 | 150 | 78 |
| SD-100C-5 | 36...72 | 5 | 0...20 | 100 | 4,5...5,5 | 2 | 100 | 75 |
| SD-100C-12 | 36...72 | 12 | 0...8,5 | 102 | 11...16 | 1 | 120 | 77 |
| SD-100C-24 | 36...72 | 24 | 0...4,2 | 100,8 | 23...30 | 1 | 150 | 81 |
| SD-100D-5 | 72...144 | 5 | 0...20 | 100 | 4,5...5,5 | 2 | 100 | 76 |
| SD-100D-12 | 72...144 | 12 | 0...8,5 | 102 | 11...16 | 1 | 120 | 80 |
| SD-100D-24 | 72...144 | 24 | 0...4,2 | 100,8 | 23...30 | 1 | 150 | 83 |
| UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||||
