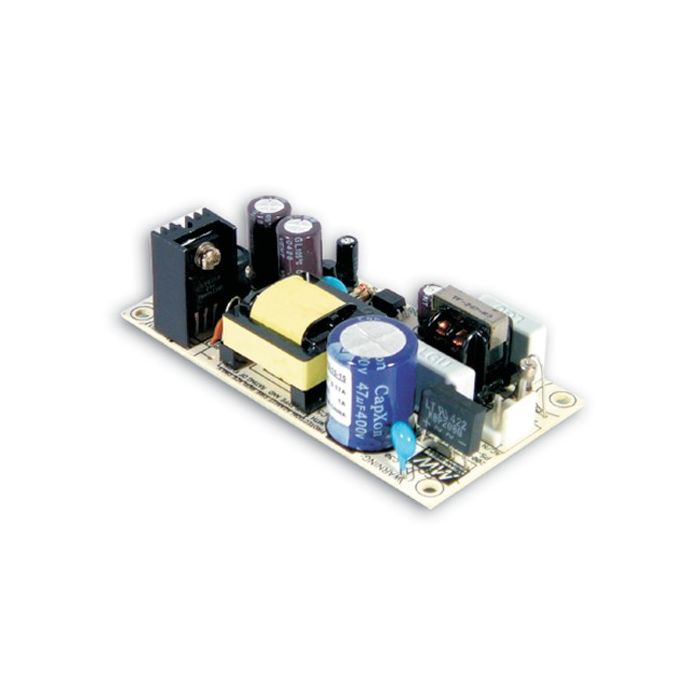

GESCHAKELDE VOEDING SINGLE OUTPUT 15W 48V/0.313A

Universal AC input / Full range
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage/Over temperature
Cooling by free air convection
100% full load burn-in test
Fix switching frequency at 67KHz
Low cost
High reliability

OUTPUT:
DC VOLTAGE: 48V
CURRENT: 0.313A
VOLTAGE TOLERANCE +/-2.0%

INPUTS
AC VOLTAGE: 85-264V

DIMENSION: 94*49*25mm (L*W*H)
