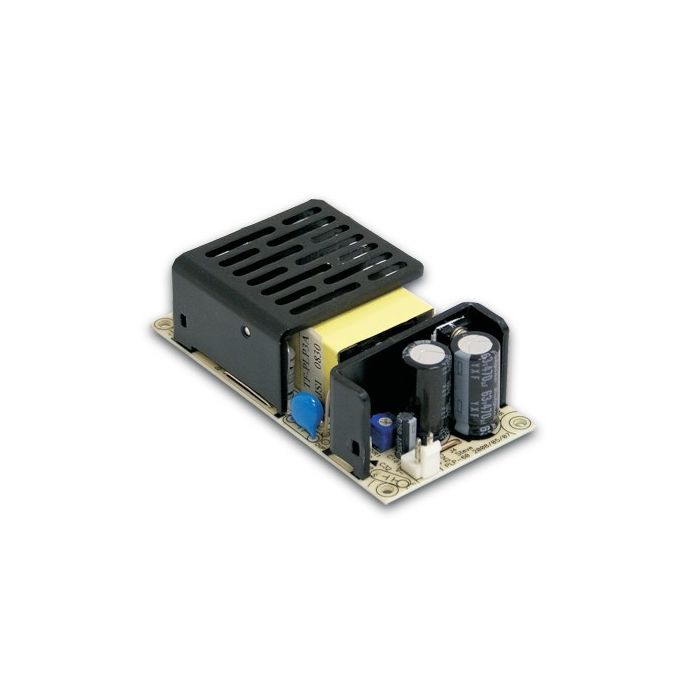

LED VOEDING 48V/1,3A 62,5W OPEN FRAME
€ 26,95
€ 22,27
Artikelnummer
PLP6048
- ArtikelnummerPLP6048
- MerkMEANWELL
- Aantal 3+ € 25,59 € 21,15
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
Open-frame
Built-in active PFC function
Suitable for LED lighting and moving sign applications
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 42A
Over Load Protection: 100...115%
Withstand Voltage
(I/P-O/P): 3750V AC
(I/P-FG): 1880V AC
(O/P-FG): 500V AC
I/P = Input, O/P = Output, FG = Frame Ground
Operating Temperature: -30...+70°C
Weight: 160g
Dimensons 101,6x50,8x28mm (LxWXH)
Output Voltage: 48Vdc
Output Current Range: 0 - 1,3A
Current Adjustment: 0,975 - 1,3A
Output Power: 62,5W
Output Voltage Tolerance: 10%
Ripple & Noise: 4,8Vp-p
Typ. Efficiency: 89%
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
Open-frame
Built-in active PFC function
Suitable for LED lighting and moving sign applications
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 42A
Over Load Protection: 100...115%
Withstand Voltage
(I/P-O/P): 3750V AC
(I/P-FG): 1880V AC
(O/P-FG): 500V AC
I/P = Input, O/P = Output, FG = Frame Ground
Operating Temperature: -30...+70°C
Weight: 160g
Dimensons 101,6x50,8x28mm (LxWXH)
Output Voltage: 48Vdc
Output Current Range: 0 - 1,3A
Current Adjustment: 0,975 - 1,3A
Output Power: 62,5W
Output Voltage Tolerance: 10%
Ripple & Noise: 4,8Vp-p
Typ. Efficiency: 89%
