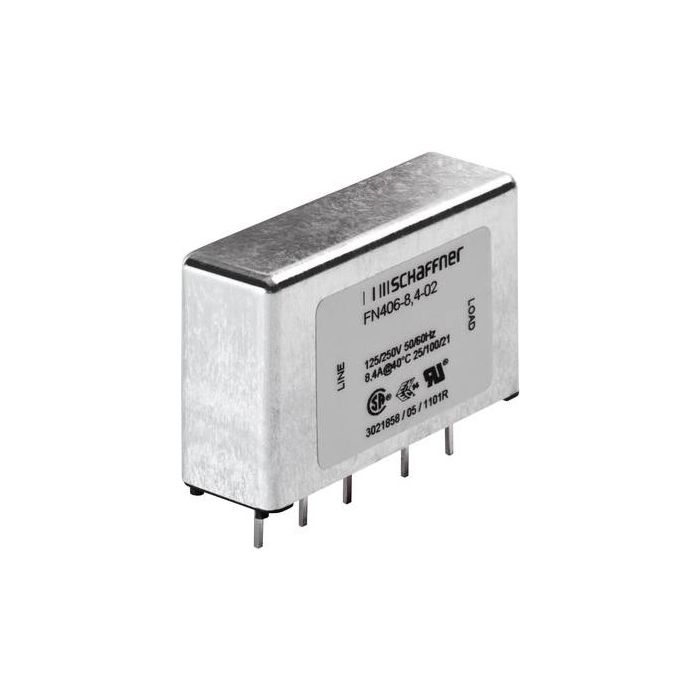

NETFILTER RFI 8.4A 230V PRINT LOW PROFILE
€ 15,50
€ 12,81
Artikelnummer
FN406-8.4
- ArtikelnummerFN406-8.4
- MerkSCHAFFNER
- Aantal 5+ € 13,94 € 11,52
Features
| • Single phase PCB-mounting filters, Aluminium case • Low profile • |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground (B-Type): | 2,5kV AC |
| Line To Line: | 760V AC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [nF] | [nF] | [µA] | |
| FN406-0.5 | 0,5 | 24 | 100 | 2,2 | 373 |
| FN406-1 | 1 | 12 | 100 | 2,2 | 373 |
| FN406-3 | 3 | 2,5 | 100 | 2,2 | 373 |
| FN406-6 | 6 | 0,78 | 100 | 2,2 | 373 |
| FN406-8.4 | 8,4 | 0,3 | 100 | 2,2 | 373 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V, 50Hz | |||||
|
|||||
| Approvals |
   14 |
