ANTENNE BASIS 27MHZ 5/8 3.35DBI

€ 129,95 € 107,40

Artikelnummer

MONSOON

Toon meer Toon minder

ArtikelnummerMONSOON
MerkSIRIO

Aantal 5+ € 123,46 € 102,03

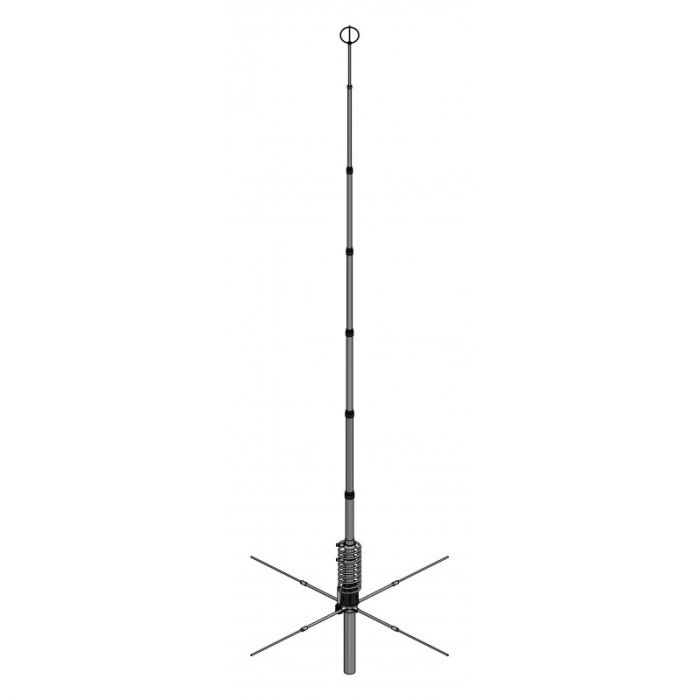

The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz.

Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024.

High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX.

Frequency range: 26 - 30 MHz tunable

Electrical data

Electrical type: 5/8 λ ground plane
Gain: 1.2 dBd, 3.35 dBi
VSWR: ≤ 1.2 @ 27.2 MHz
Bandwidth: 1400 kHz ≤ 2.0
Maximum continuous power: 1000 Watts (CW)
Power peak: 3000 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical

Mechanical data

Materials: Aluminium, brass, galvanized steel, thermoplastic UV stabilized
Mast Ø: 35 - 42 mm
Max wind resistance: 130 km/h
Height: 7180 mm
Weight: 3000 gram
Mounting type: On mast
Antenna connector: UHF-female
Radial length: 2000 mm
