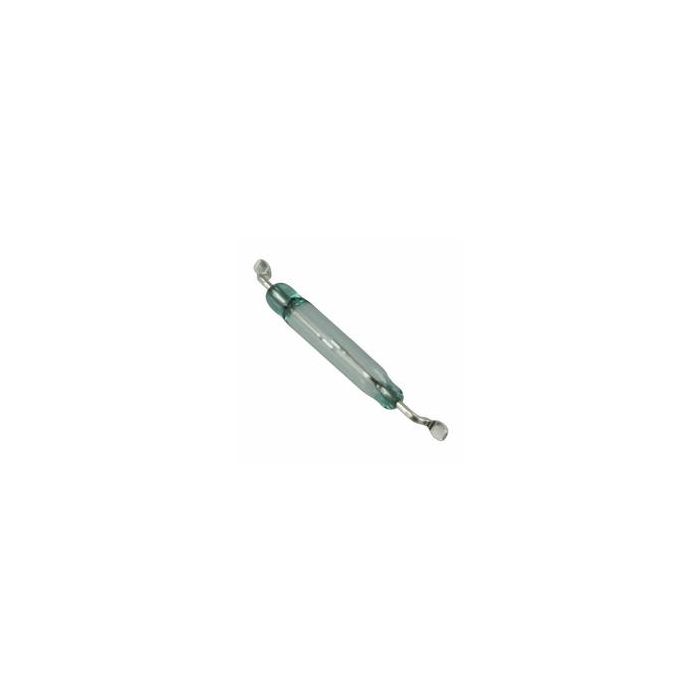

REED SENSOR SMD 1XMAAK 14X2,2MM 10-30AT 0.5A 10W 10 STUKS

Features
• Reed switches without moulding case
• No power-required sensor for low power applications
• No external power required for sensor operation
• For example: automotive und telecommunication applications

Switching Capacity, Max. W: 10
Switching Voltage, Max. Vdc: 200
Switching Current, Max. A: 0,5
Carry Current, Max. A: 1,25
Contact Resistance, Max. mW: 150
Breakdown Voltage, Min. Vdc: 225
Initial Excitation AW: 10..30
