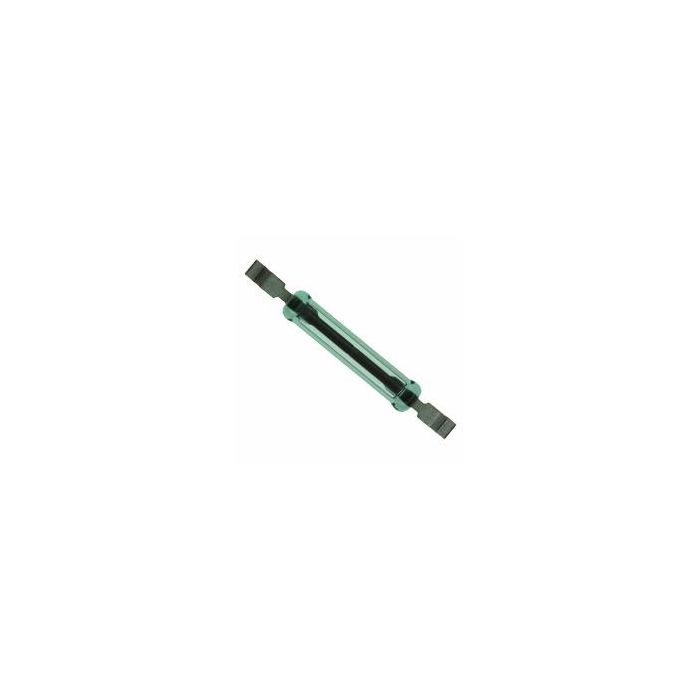

REED SENSOR SMD 1XMAAK 15,8X1,9X2,1MM 1.0A 20W 10 STUKS
€ 5,95
€ 4,92
Artikelnummer
MK2335B2
- ArtikelnummerMK2335B2
- MerkMEDER
- Aantal 5+ € 5,35 € 4,42
Features
Reed switches without moulding case
No power-required sensor for low power applications
No external power required for sensor operation
For example: automotive und telecommunication applications
Switching Capacity, Max. W: 20
Switching Voltage, Max. Vdc: 200
Switching Current, Max. A: 1,0
Carry Current, Max. A: 1,25
Contact Resistance, Max. mW: 150
Breakdown Voltage, Min. Vdc: 320
Initial Excitation AW: 10..30
Reed switches without moulding case
No power-required sensor for low power applications
No external power required for sensor operation
For example: automotive und telecommunication applications
Switching Capacity, Max. W: 20
Switching Voltage, Max. Vdc: 200
Switching Current, Max. A: 1,0
Carry Current, Max. A: 1,25
Contact Resistance, Max. mW: 150
Breakdown Voltage, Min. Vdc: 320
Initial Excitation AW: 10..30
