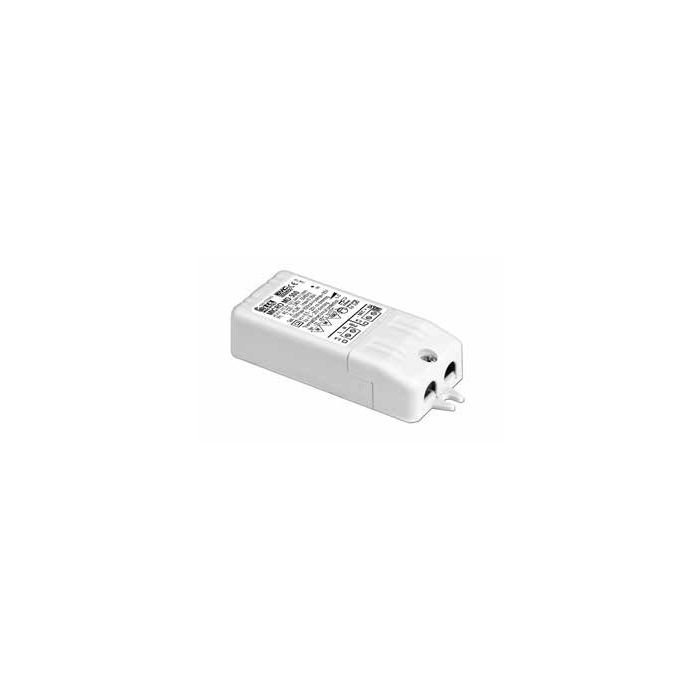

MICRO MD LED DRIVER 12-28VDC 250MA 7W DIMBAAR

Features
• IP20 independent driver, for indoor use (MICRO MD).
• Class II protection against electric shock for direct or indirect
contact (MICRO MD).
• Driver for built-in use (MICRO MD BI).
• It can be used for lighting equipment in protection class I and II
(MICRO MD BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Supplied with terminal cover and cable retainer (MICRO MD).
• Input and output terminal blocks on the same side (wire
cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (MICRO MD).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
