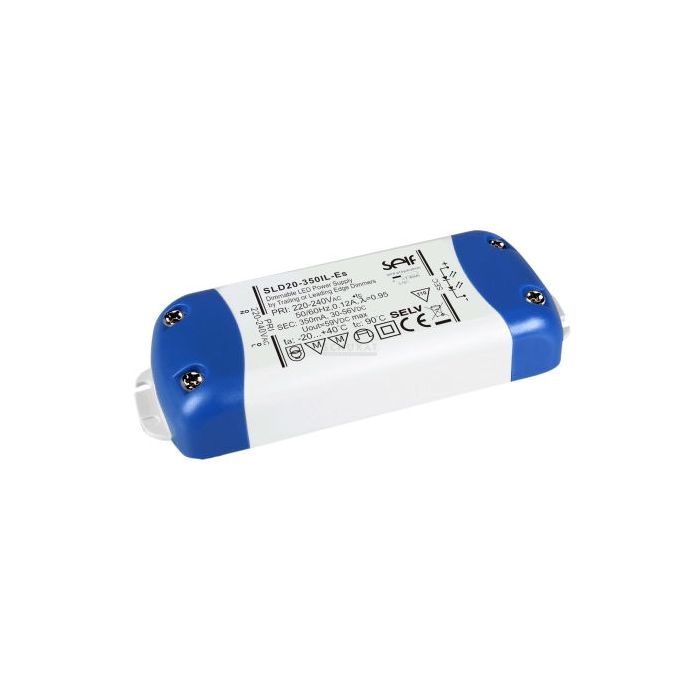

MINI LED DRIVER 30-54VDC 350MA 20W DIMBAAR
€ 19,95
€ 16,49
Artikelnummer
SLD20350IL
- ArtikelnummerSLD20350IL
- MerkSELF
- Aantal 5+ € 17,96 € 14,84
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Constant current • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 2A |
| Operating Temperature: | -20...+40°C |
| Nominal Life-Time (Tc=85°C): | 35.000h |
| Weight: | 75g |
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [mAp-p] | [%] | |
| SLD20-350IL-ES | 30...50 | 350 | 17,5 | 50 | 81,8 |
| SLD20-500IL-ES | 20...38 | 500 | 19 | 80 | 80,8 |
| SLD20-700IL-ES | 19...29 | 700 | 20,3 | 100 | 78,5 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Efficiency | |||||
