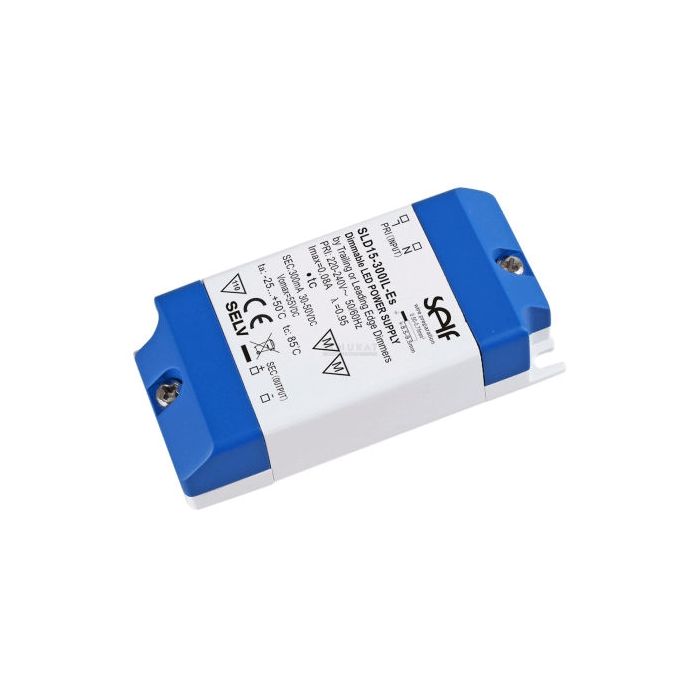

MINI LED DRIVER 24-42VDC 350MA 15W DIMBAAR
€ 18,50
€ 15,29
Artikelnummer
SLD15350IL
- ArtikelnummerSLD15350IL
- MerkSELF
- Aantal 5+ € 16,65 € 13,76
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Constant current • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 2A |
| Operating Temperature: | -25...+50°C |
| Nominal Life-Time (Tc=85°C): | 50.000h |
| Weight: | 95g |
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [mAp-p] | [%] | |
| SLD15-300IL-ES | 24...48 | 300 | 15 | 15 | 80,8 |
| SLD15-350IL-ES | 24...42 | 350 | 15 | 20 | 80,3 |
| SLD15-500IL-ES | 17...30 | 500 | 15 | 25 | 80,4 |
| SLD15-700IL-ES | 9...22 | 700 | 15 | 37 | 78,9 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Efficiency | |||||
