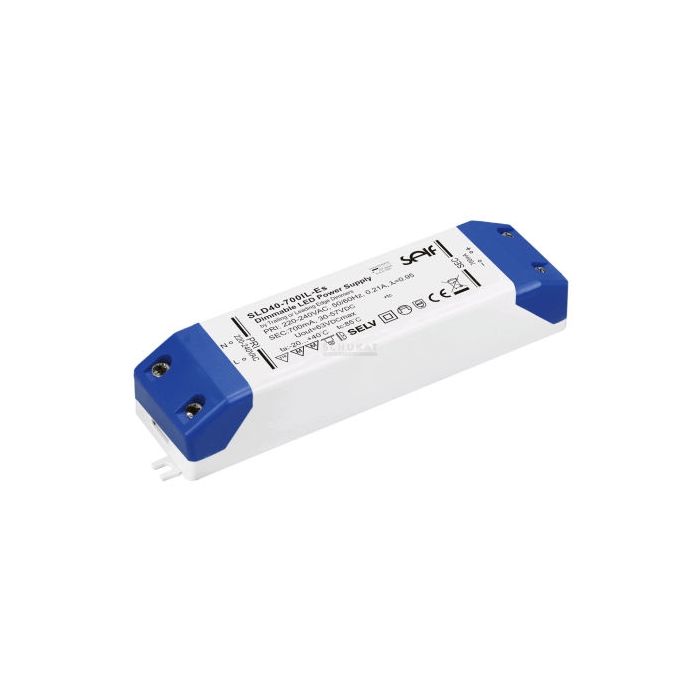

MINI LED DRIVER 19-38VDC 1050MA 40W DIMBAAR
€ 29,95
€ 24,75
Artikelnummer
SLD40105IL
- ArtikelnummerSLD40105IL
- MerkSELF
- Aantal 5+ € 26,95 € 22,27
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Constant current • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 19A |
| Operating Temperature: | -20...+40°C |
| Nominal Life-Time (Tc=75°C): | 50.000h |
| Weight: | 220g |
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [mAp-p] | [%] | |
| SLD40-700IL-ES | 30...55 | 700 | 40 | 50 | 87 |
| SLD40-800IL-ES | 25...50 | 800 | 40 | 50 | 87 |
| SLD40-900IL-ES | 22...44 | 900 | 40 | 70 | 86 |
| SLD40-1050IL-ES | 22...38 | 1050 | 40 | 70 | 86 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Efficiency | |||||
