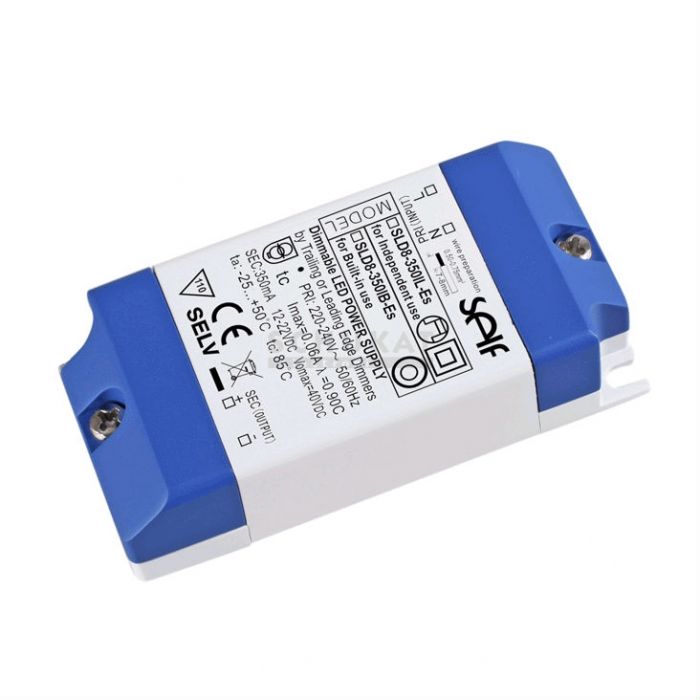

MINI LED DRIVER 12-22VDC 350MA 8W DIMBAAR
€ 19,95
€ 16,49
Artikelnummer
SLD8350IL
- ArtikelnummerSLD8350IL
- MerkSELF
- Aantal 5+ € 17,96 € 14,84
Features
| • Independent control gear • Dimmable • Interface: phase cut ; phase cut • Constant current • Protection class II, SELV output • Flicker-free design • For LED applications • Protected against short circuit, overload and overvoltage • Safety standards: EN 61347-1; EN 61347-2-13 • EMC standards: EN 55015 • 5 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Operating Temperature: | -20...+50°C |
| Nominal Life-Time (Tc=85°C): | 50.000h |
| Dimensions(LxWxH): | 85.3x41x22mm |
| Weight: | 92g |
|
|
| Part Nr. | UA | IA | PA | IR | h |
| [V] | [mA] | [W] | [%] | [%] | |
| SLD8-350IL-ES | 12...22 | 350 | 8 | ≤3 | ≥73 |
| UA = Output Voltage, IA = Output Current, PA = Output Power,IR = Ripple & Noise, h = Efficiency | |||||
|
|||||
