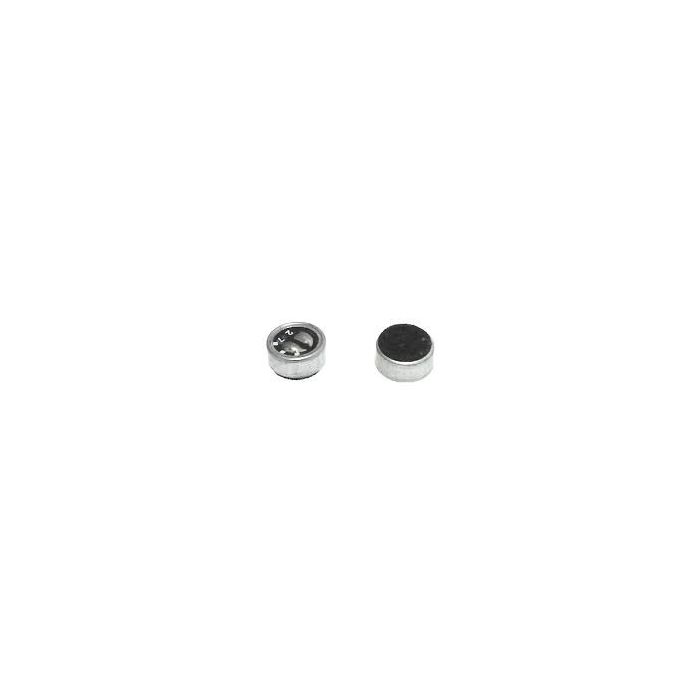

MICROFOON ELEMENT ELECTRET 6,0X2,7MM -62DB 10 STUKS
€ 6,95
€ 5,74
Artikelnummer
ECM6027SN
- ArtikelnummerECM6027SN
- MerkHITPOINT
- Aantal 4+ € 6,59 € 5,45
Features
| • Omnidirectional microphone • Tinned solder surfaces for stranded wire connection and PC pins |
 |
| Technical Specifications |
|
|
| Directivity: | Omnidirectional |
| Impedance, Max.: | 2,2kOhm |
| Current Consumption, Max.: | 0,5mA |
| Operating Voltage: | 1,0...10V |
| Operating Temperature: | -10...+45°C |
| Storage Temperature: | -20...+60°C |
|
|
| Part Nr. | C1 | C2 | Sensitivity1) | Sensitivity2) | Frequency |
| Range | |||||
| [pF] | [pF] | [dB] | [dB] | [Hz] | |
| PMOF6027SN-42U | 10 | 33 | -62 | -42 | 20...16000 |
| - | - | - | |||
| 1) 0dB = 1V/µBar, 1kHz,2) 0dB = 1V/Pa, 1kHz | |||||
|
|||||
