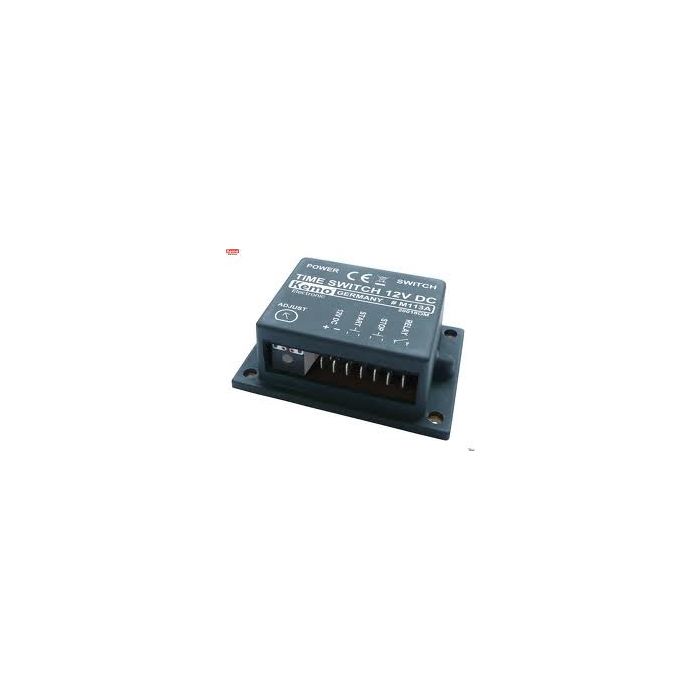

TIJDSCHAKELAAR 2 SEC. - 23 MINUTEN 12-15VDC
€ 19,95
€ 16,49
Artikelnummer
M113A
- ArtikelnummerM113A
- MerkKEMO
- Aantal 5+ € 18,95 € 15,66
Time switch approx. 2 sec. up to 23 min. (± 30%)
Switches other devices on after pressing the key and switches them off again automatically by means of the installed relay point 1 x ON (max. 3 A) when the adjusted time has expired. The lapse of time may be interrupted any time with the second key. 2 push-buttons are required for operation.
Technical Data
Operating voltage 12 - 15 V/DC
Current consumption approx. 20 mA / 80 mA (relay off / on)
Adjustable time approx. 2 sec. to 23 min., (± 30 %)
Connection via flat-pin plug at the module
Displays 2 (1 x LED operating voltage, 1 x LED relay ON)
Relay point 1 x ON, max. 3 A, max 25 V (The installed relay point may also switch up to 230 V/AC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed)
Dimensions approx. 87 x 60 x 33 mm (with mounting bottom)
Switches other devices on after pressing the key and switches them off again automatically by means of the installed relay point 1 x ON (max. 3 A) when the adjusted time has expired. The lapse of time may be interrupted any time with the second key. 2 push-buttons are required for operation.
Technical Data
Operating voltage 12 - 15 V/DC
Current consumption approx. 20 mA / 80 mA (relay off / on)
Adjustable time approx. 2 sec. to 23 min., (± 30 %)
Connection via flat-pin plug at the module
Displays 2 (1 x LED operating voltage, 1 x LED relay ON)
Relay point 1 x ON, max. 3 A, max 25 V (The installed relay point may also switch up to 230 V/AC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed)
Dimensions approx. 87 x 60 x 33 mm (with mounting bottom)
