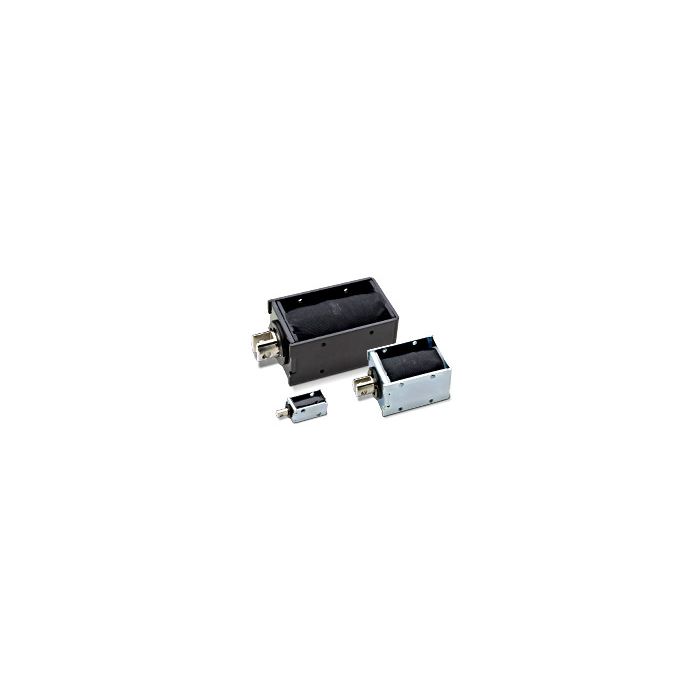

SOLENOID DUWMAGNEET 24VDC/0.53A 1,2KG
€ 67,51
€ 55,79
Artikelnummer
LS4035D24
- ArtikelnummerLS4035D24
- MerkRED-MAGNETICS
- Aantal 5+ € 60,75 € 50,21
Description
Chaeap and light-weight based on frame
mode construction. Including damping ring
and dumper inside the case. Open frame
solenoid with closed brace.
Medium but with overload passably stroke
at the 25 - 40 mm.
Weight: 530 g
Elevated force at end of the stroke.
Coil Data
Relative ED (Percent) 100 50 25 10
Max. Performance
(Watt) 12,7 25,4 50,8 127
Max. ED (Seconds) 160 80 32
Solenoid Layout
Version:
Pressure Solenoid with spring return
Current:
24 VDC (standard)
Chaeap and light-weight based on frame
mode construction. Including damping ring
and dumper inside the case. Open frame
solenoid with closed brace.
Medium but with overload passably stroke
at the 25 - 40 mm.
Weight: 530 g
Elevated force at end of the stroke.
Coil Data
Relative ED (Percent) 100 50 25 10
Max. Performance
(Watt) 12,7 25,4 50,8 127
Max. ED (Seconds) 160 80 32
Solenoid Layout
Version:
Pressure Solenoid with spring return
Current:
24 VDC (standard)
