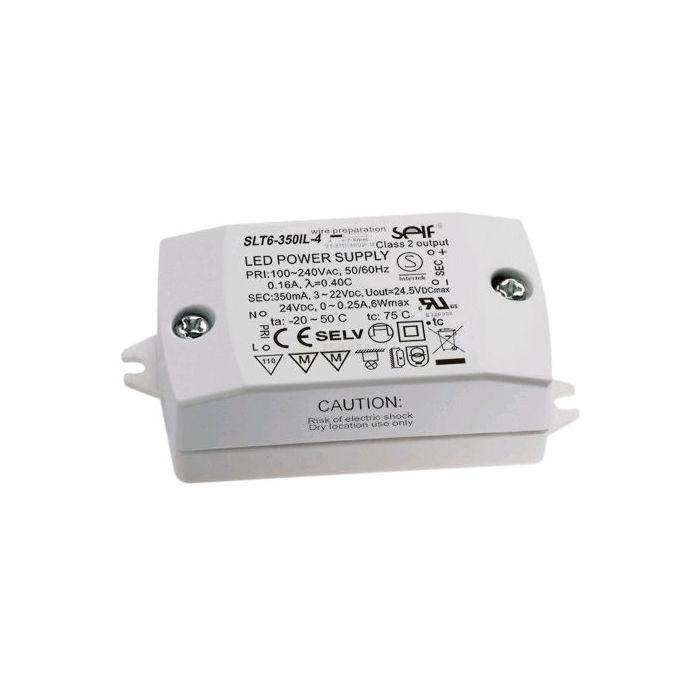

LED DRIVER 3-23VDC 350MA 6W
€ 15,95
€ 13,18
Artikelnummer
SLT6350IL
- ArtikelnummerSLT6350IL
- MerkSELF
- Aantal 5+ € 14,35 € 11,86
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Constant current and constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications |
 |
| Technical Specifications |
|
|
| Input Voltage: | 100...240V AC |
| Input Inrush Current: | 40A |
| Operating Temperature: | -20...+50°C |
| Nominal Life-Time (Tc=75°C): | 35.000h |
| Weight: | 37,5g |
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [mAp-p] | [%] | |
| SLT6-350IL-4 | 3...22 | 350 | 6 | 50 | 76,5 |
| SLT6-500IL-4 | 3...12 | 500 | 6 | 70 | 70,5 |
| SLT6-700IL-4 | 3...8,4 | 700 | 6 | 90 | 70,12 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Efficiency | |||||
