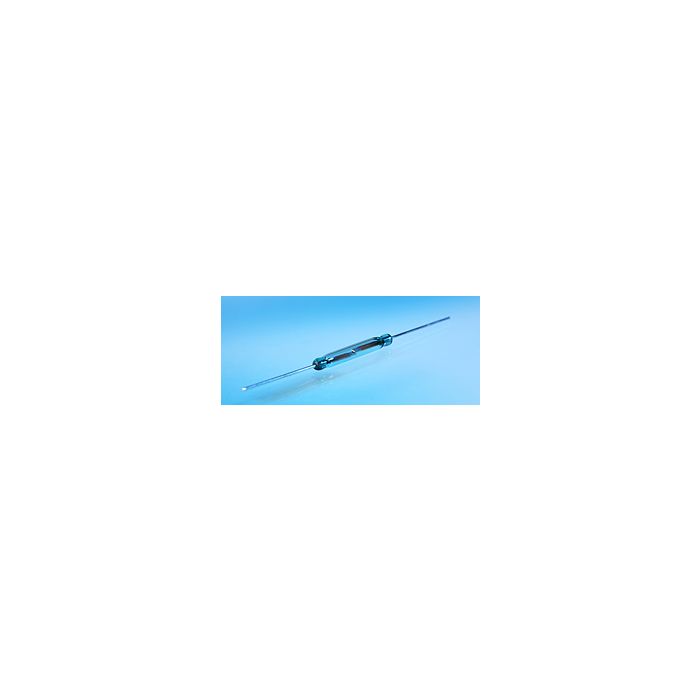

REED KONTAKT 21X2.75MM 1XMAAK 350V 0,5A 50W 40-50AT 10 STUKS
€ 23,95
€ 19,79
Artikelnummer
KSK1A52-40
- ArtikelnummerKSK1A52-40
- MerkMEDER
- Aantal 5+ € 21,55 € 17,81
| Technical Specifications |
| Part Nr. | Type of Contact | US |
IS |
RK |
tS |
tAb |
| [V] | [A] | [mOhm] | [ms] | [ms] | ||
| KSK1A87-1520 | SPST | 200 | 0,5 | 150 | 0,6 | 0,1 |
| KSK1A87-2025 | SPST | 200 | 0,5 | 150 | 0,6 | 0,1 |
| KSK1A66-1020 | SPST | 200 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A66-2030 | SPST | 200 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A52-2030 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1A52-3040 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1A52-4050 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1C90-1520 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90-2025 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| US = Switching Voltage, Max., IS = Switching Current, Max. (0,5V/10mA), RK = Contact Resistance, Max., tS = Switching Time incl. Bounce, tAb = Reset Time |
||||||
 |
||||||
| Part Nr. | PS |
IT |
RISO |
UD |
AEB |
| [W] | [A] | [Ohm] | [V DC] | [AT] | |
| KSK1A87-1520 | 10 | 0,5 | 109 |
230 | 15...20 |
| KSK1A87-2025 | 10 | 0,5 | 109 |
230 | 20...25 |
| KSK1A66-1020 | 10 | 1,25 | 1010 |
225 | 10...20 |
| KSK1A66-2030 | 10 | 1,25 | 1010 |
225 | 20...30 |
| KSK1A52-2030 | 50 | 2,5 | 1010 |
600 | 20...30 |
| KSK1A52-3040 | 50 | 2,5 | 1010 |
600 | 30...40 |
| KSK1A52-4050 | 50 | 2,5 | 1010 |
600 | 40...50 |
| KSK1C90-1520 | 10 | 1,0 | 109 |
200 | 15...20 |
| KSK1C90-2025 | 10 | 1,0 | 109 |
200 | 20...25 |
| PS = Switching Capacity, Max., IT = Carry Current, Max., RISO = Insulation Resistance, UD = Breakdown Voltage, Min., AE = Initial Excitation (Reference Value) | |||||
