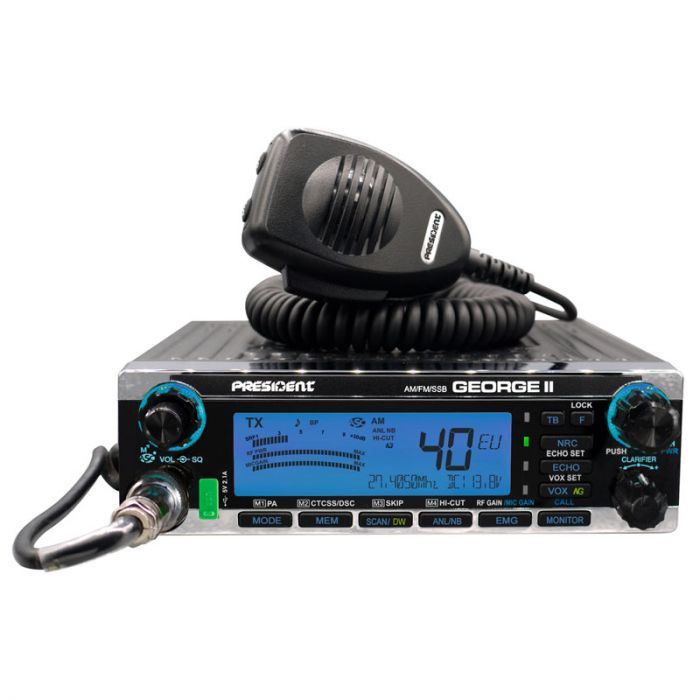

PRESIDENT GEORGE II ASC AM/FM SSB

De nieuwe President George II is uw ultieme 40-kanaals AM/FM/USB/LSB-transceiver. De radio heeft een vermogen van 4 Watt op AM/FM en 12 Watt op SSB. De George II wordt geleverd met 38 CTCSS-tonen en 104 DCS-codes, zodat uw gesprekken privé en storingsvrij blijven. Daarnaast zijn er nog vele andere interessante kenmerken die de George II tot een van de meest opwindende CB-radio's op de markt maken.

Frequentiebereik: 26,965 - 27,405 MHz

Features

• Modulation: AM / FM / LSB / USB
• Multi-bands: Yes
• Output power: AM/FM: 4 Watt / SSB: 12 Watt
• Channels: 40
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• USB: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Scan function: Yes
• Memory channels: Yes
• External speaker socket: Yes
• External PA socket: Yes
• S-meter: Yes
• MIC gain: Yes
• RF gain: Yes
• Dual watch: Yes
• CTCSS: Yes, 38 tones
• DCS: Yes, 104 codes
• External VOX socket: Yes
• Roger Beep: Yes
• Key Beep: Yes
• Clarifier: Yes

Electrical data

• Voltage: 13,8 Vol

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 3.0 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 2.0 %
• Drain: 13.2 Volt: < 5 A max. with modulation

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,5 µV - 113 dBm
• Maximum audio power: 3 Watts
• USB/LSB sensitivity: 0,28 µV - 118 dBm
• Frequency response: 300 Hz - 3 kHz

Mechanical data

• Length: 185 mm
• Height: 56 mm
• Width: 172 mm
• Weight: 1190 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
