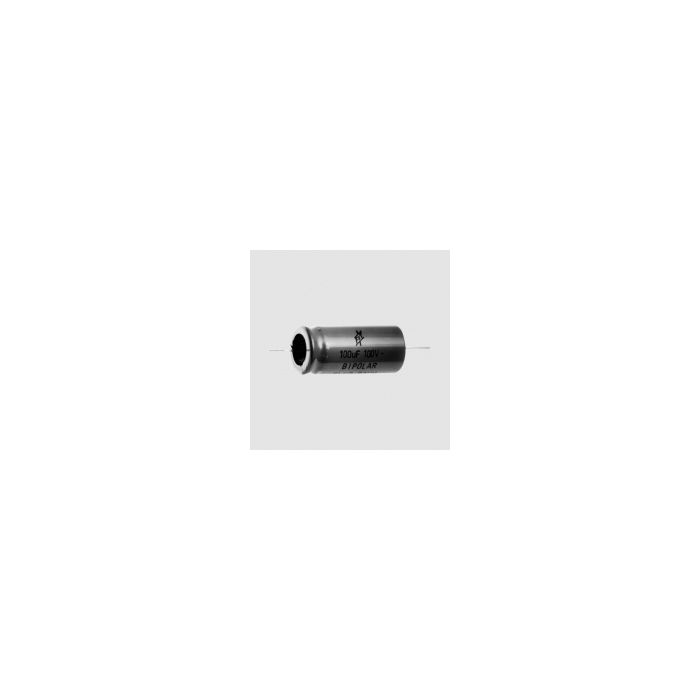

ELCO BIPOLAR 2.2UF 100V
€ 1,16
€ 0,96
Artikelnummer
EBA22
- ArtikelnummerEBA22
- MerkBrand
- Aantal 25+ € 1,04 € 0,86
Features
High purity aluminium foil etched with controlled pore structure
Axial, bipolar, insulated
Small dimensions for normal requirements
Low loss factor
Low capacitance tolerance
Good ripple current
Technical Specifications
Rated Voltage: 100V DC (35V AC)
Capacitance Tolerance: ±20%
Temperature Range: -40...+85°C
Climatic Category (DIN 40040): 40/085/56
Life Expectancy
at +40°C: >50.000h
at +85°C: >2.500h
at +105°C: >500h
Dimensions L= 30mm D= 10mm and 2 x 40mm wire
High purity aluminium foil etched with controlled pore structure
Axial, bipolar, insulated
Small dimensions for normal requirements
Low loss factor
Low capacitance tolerance
Good ripple current
Technical Specifications
Rated Voltage: 100V DC (35V AC)
Capacitance Tolerance: ±20%
Temperature Range: -40...+85°C
Climatic Category (DIN 40040): 40/085/56
Life Expectancy
at +40°C: >50.000h
at +85°C: >2.500h
at +105°C: >500h
Dimensions L= 30mm D= 10mm and 2 x 40mm wire
