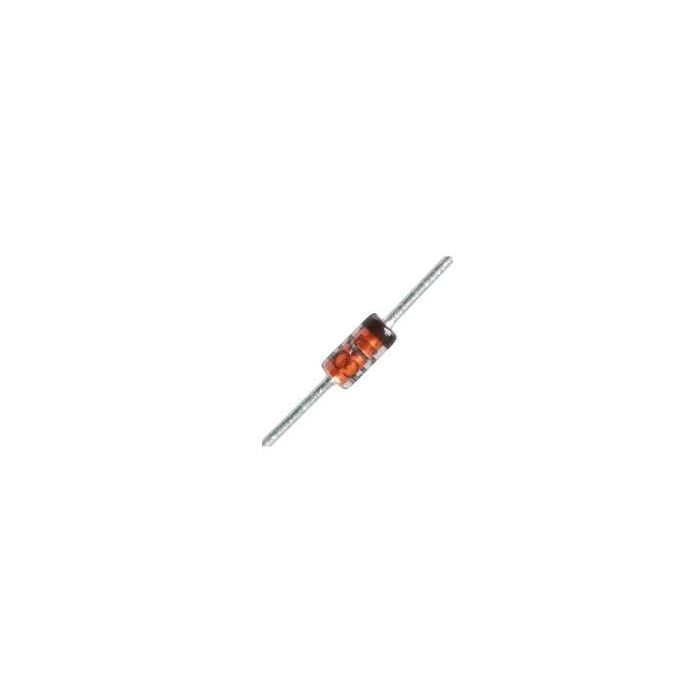

DIODE SCHOTTKY 30V 200MA DO34

Specificaties
Configuration Single
Maximum Continuous Forward Current 0.2A
Maximum Operating Temperature 125°C
Minimum Operating Temperature -65°C
Mounting Through Hole
Peak Forward Voltage 0.8V
Peak Non-Repetitive Surge Current 5A
Peak Reverse Current 2ìA
Peak Reverse Recovery Time 4ns
Peak Reverse Repetitive Voltage 30V
Pin Count 2
Product Height 1.6mm
Product Length 3.04mm
Product Width 1.6mm
Supplier Package DO-34
Type Schottky Diode
