ATC ZEKERING 10A AUTO RESET
€ 5,95
€ 4,92
Artikelnummer
AR3410
- ArtikelnummerAR3410
- MerkEKSA
- Aantal 10+ € 5,35 € 4,42
| Features |
| • Automatic reset type (Type I) • Single pole temperature circuit • For applications in the automotive industry |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 28V |
| Pre-arcing Time Limits 5...30A | |
| 2xIN, Min. / Max.: | on Request |
| 4xIN, Min. / Max.: | on Request |
| 10xIN, Min. / Max.: | on Request |
| Temperature Range: | -40...+85°C |
|
|

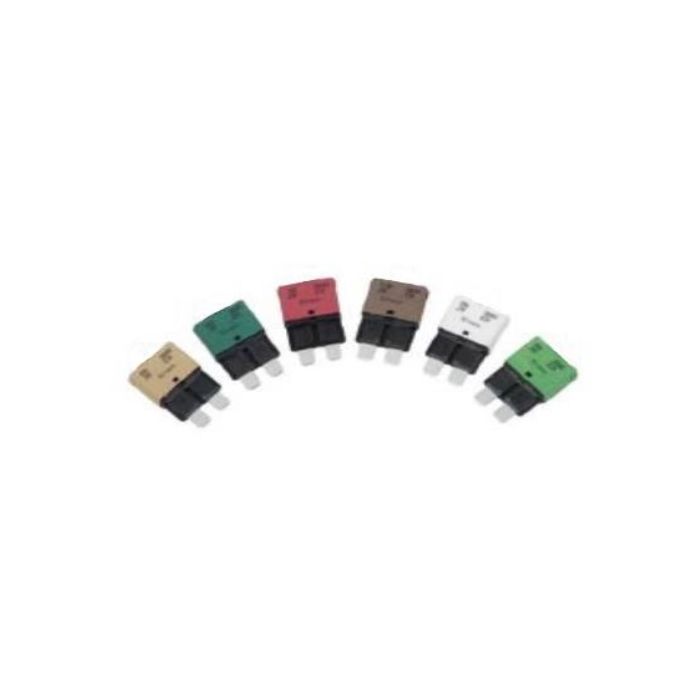

| Part Nr. | IN | UN | IBC | Colour |
| [A] | [V] | [A] | ||
| AR3405 | 5 | 28 | 100 | Tan |
| AR3407 | 7,5 | 28 | 100 | Moos Green |
| AR3410 | 10 | 28 | 100 | Red |
| AR3415 | 15 | 28 | 150 | Blue |
| AR3420 | 20 | 28 | 200 | Yellow |
| AR3425 | 25 | 28 | 300 | White |
| AR3430 | 30 | 28 | 300 | Green |
| IN = Rated Voltage, UN = Rated Current, IBC = Breaking Capacity | ||||
|
||||
| Norms |
| SAE J553 Type III |
